Moovie
Emergency stretcher with 5° motorized wheel
MOOVIE is a motorized stretcher designed to provide maximum comfort for patients and reduce physical strain on healthcare professionals. In its standard configuration, MOOVIE is a 2-section hydraulic stretcher with adjustable height, making it easy to move and transport patients in a variety of medical settings.

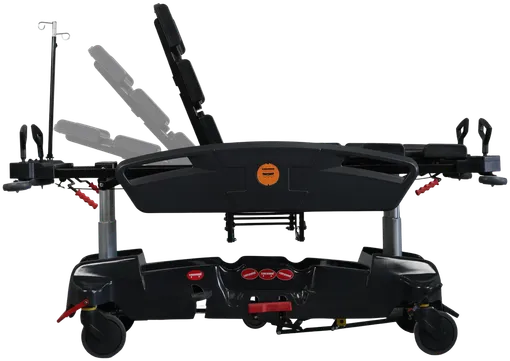

A sturdy steel frame is mounted on four swiveling, antistatic wheels, with a lifting system powered by two round hydraulic columns. Height, mattress platform, trendelenburg, and reverse trendelenburg are controlled by foot pedals located on the side, while the backrest is adjustable via a servo-assisted gas spring lever. The siderails offer maximum patient security when raised and fold down completely out of the way for zero-gap transfers.
The base frame is covered with an easy-to-clean plastic material, which includes a glove compartment for clothing and a space to store an oxygen tank of up to 7 liters. With its highly configurable and customizable design, MOOVIE can be tailored to meet specific needs and preferences.
Technology
Design and features
MOOVIE is highly configurable and customizable in terms of size and accessories, in order to allow you to create the ideal solution to meet your specific needs.

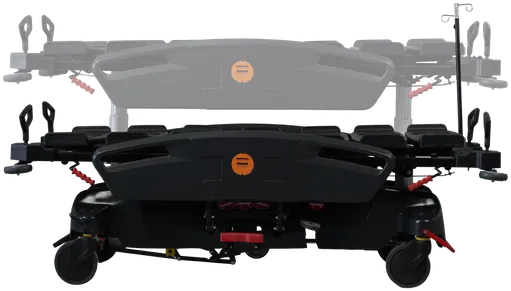

In its standard configuration, the overall dimensions are 214 x 74 cm with a patient surface of 192 x 72 cm. The height adjustment of the surface goes from a minimum of 58 cm to a maximum of 90 cm. The diameter of the castors is 20 cm, while the motorized wheel has a diameter of 17 cm. The safe working capacity is 250 kg.
